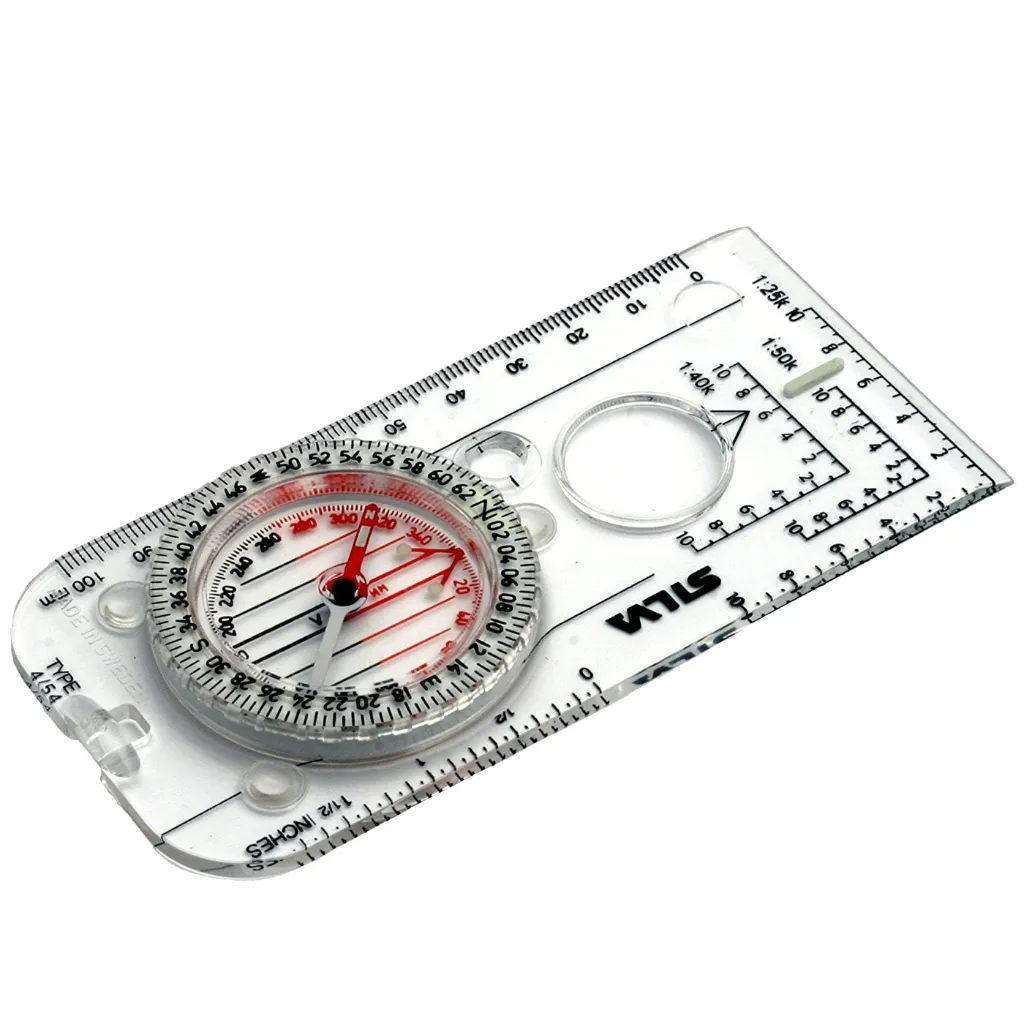

The Silva Compass 4 Militaire is a base plate compass designed for experienced military navigators, and is used by NATO Forces around the world. Features include measuring scales for positioning (GPS), graduation in mils and degrees (6400/360), integrated adjuster for magnetic declination, magnifying lens and rubber feet for precision map work. The compass has a luminous graduation ring and markings for compass reading in the dark. Once activated by daylight/flashlight it will give light up to 4 hours of light.
Features:
- Accuracy:± 1° (17.8 mils)
- Altitude use: 5000m @-15 °C
- Clinometer
- Declination adjustment
- Graduation: 6400° / 360°
- Illumination: 4 hours after activation in light, Luminous markings
- Impact resistance: 30g in XYZ directions and free fall from 1.5 m height into gravel
- Magnifying lens
- Material: Acrylic, PC/ABS, TPU
- Resolution degrees / mils: 2 / 50
- Sapphire jewel bearing for friction-free movement of the compass needle
- Scales: Baseplate: 1:25k, 1:40k, 1:50k, mm, inch,
- Settling time from 90° angle to complete rest:5 sec
- Settling time from 90° angle within ± 3°:2.7 sec
- Sighting System: No
- Silicon friction feet
- Size: 126x60x13
- Temperature operating range: -30 to 60 C
- Patented red/black N/S lines in capsule
- Turnable capsule
- UTM position plotting scales (Romer scales): 1:25k, 1:40k, 1:50k
- Variant: Magnetic North
- Weight: 50g
- Other: GPS scales
